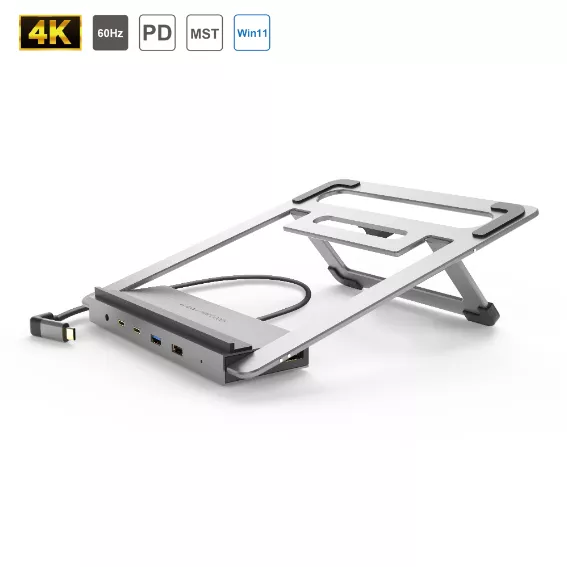

4K 12 In 1 Type C Stand Dock
4KTCP-1202
Description:
- 12 in 1 Type C multiple ports with stand dock
- Type C to HDMI2.0 x 2 + DP1.4 + USB-A 3.2 Gen 2 + USB-C 3.2 Gen 2 x 2 + USB2.0 x 3 + LAN + Audio + PD3.0
- 2 x USB-C 3.2 Gen 2 interface transmission speed up to 10Gbps
- 1 x USB-A 3.2 Gen 2 interface transmission speed up to 10Gbps
- 3 x USB 2.0 A/F interface transmission speed up to 480Mbps
- Compatible with USB 3.2 Gen 2 and backwards compatible with USB 3.2 Gen 1 and USB 2.0
- Supports PD 3.0
- HDMI supports 4K@60Hz
- DP supports 4K@60Hz
- The resolution of HDMI & DP is 4K@30Hz under MST mode (only for Windows OS)
- The RJ45 port supports speeds of up to 1000 Mbps
- 3.5 Audio port (Mic & Speaker) supports CTIA and OMTP
- Supports Windows 10 or above, macOS 10.0 or above
