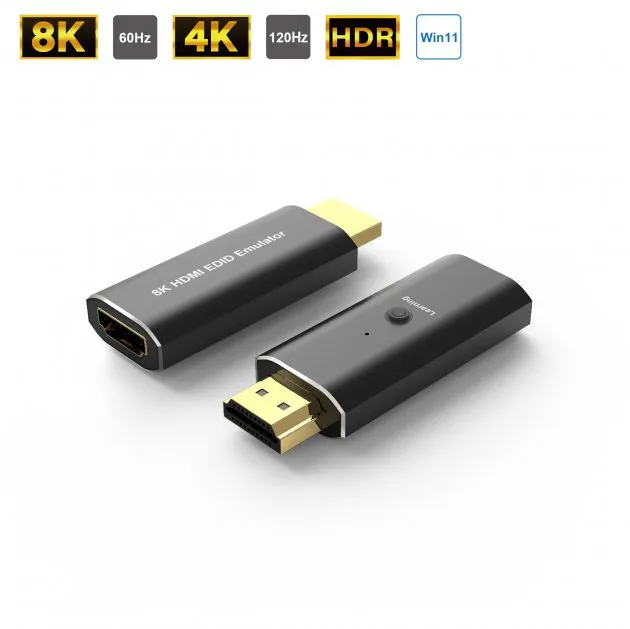

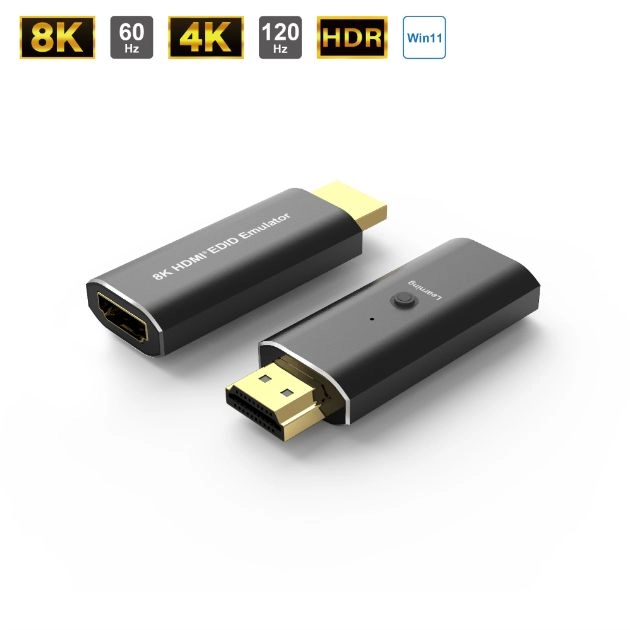

8K HDMI EDID Emulator
HDED-200
Description：
- Input: HDMI male
- Output: HDMI female
- Hide the sink's EDID and provide the general EDID to source.
- Backup EDID without IC programer (Back up Mode)
- Supports VESA and CEA spec
- Support HDMI2.1
-
2 modes available: Default mode, Backup Mode
Default mode supports resolution up to 4K@60Hz
Backup mode supports resolution up to 4K@120Hz, 8K@60Hz
- LED : Indicator
- Learning Button: Learn the screen's EDID or revert to the default EDID
- Default mode:

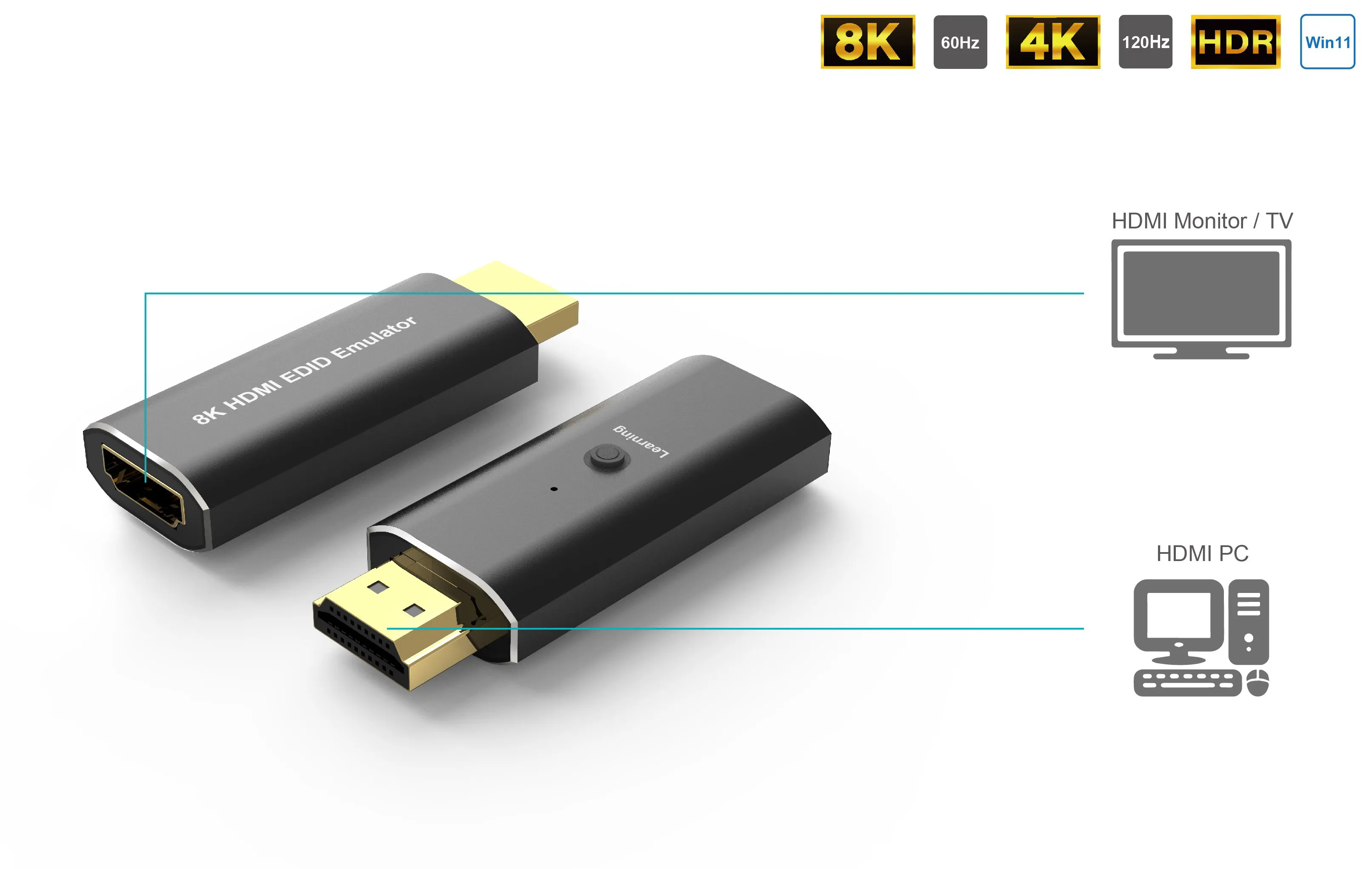

Connect the source and the display to the emulator, You can use the default EDID provided by the emulator immediately.
The EDID name for this mode is HDMI_8K EDID, which supports up to HDMI 2.0.
And in this mode, the LED indicator does not light up. - Backup Mode:

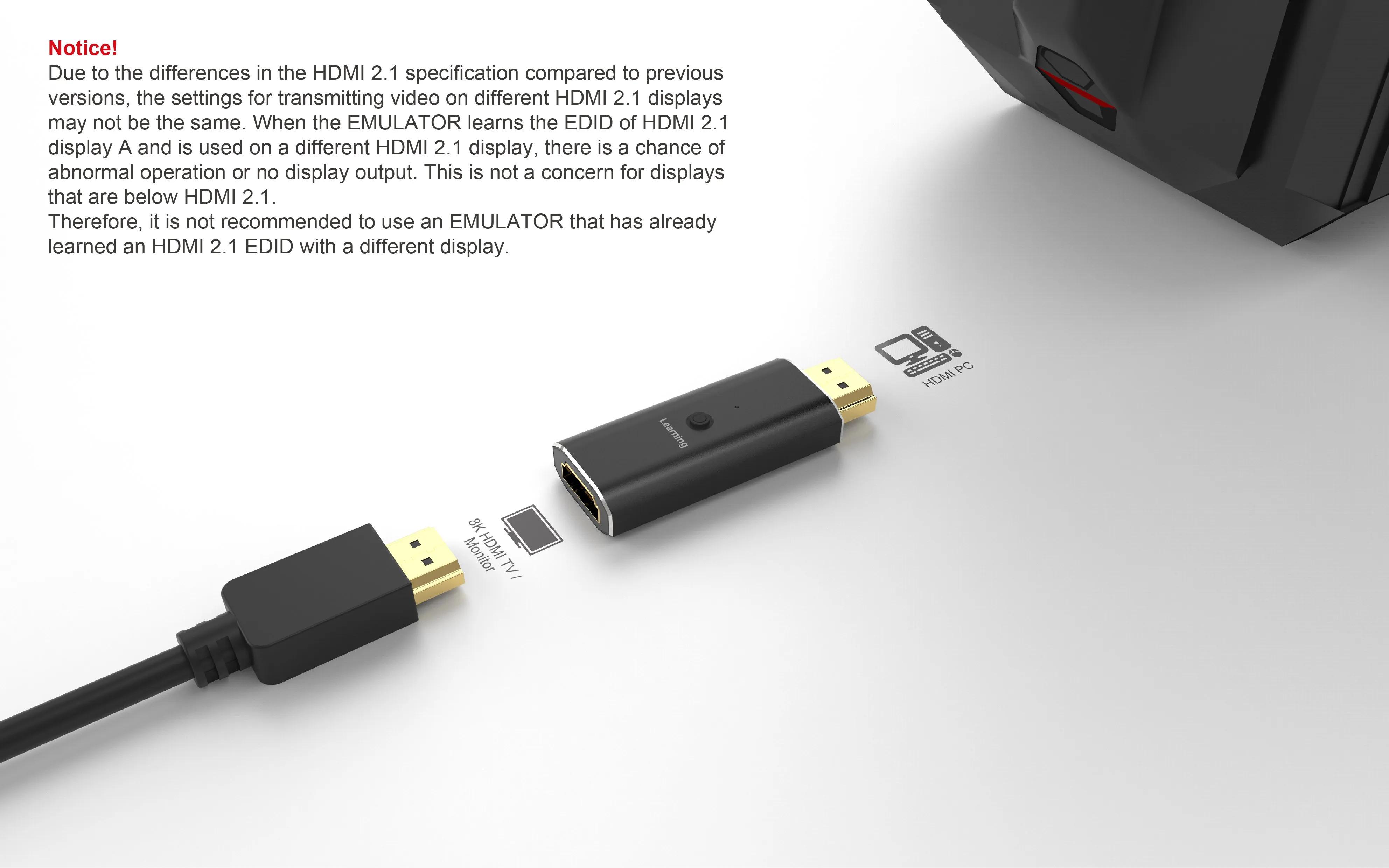

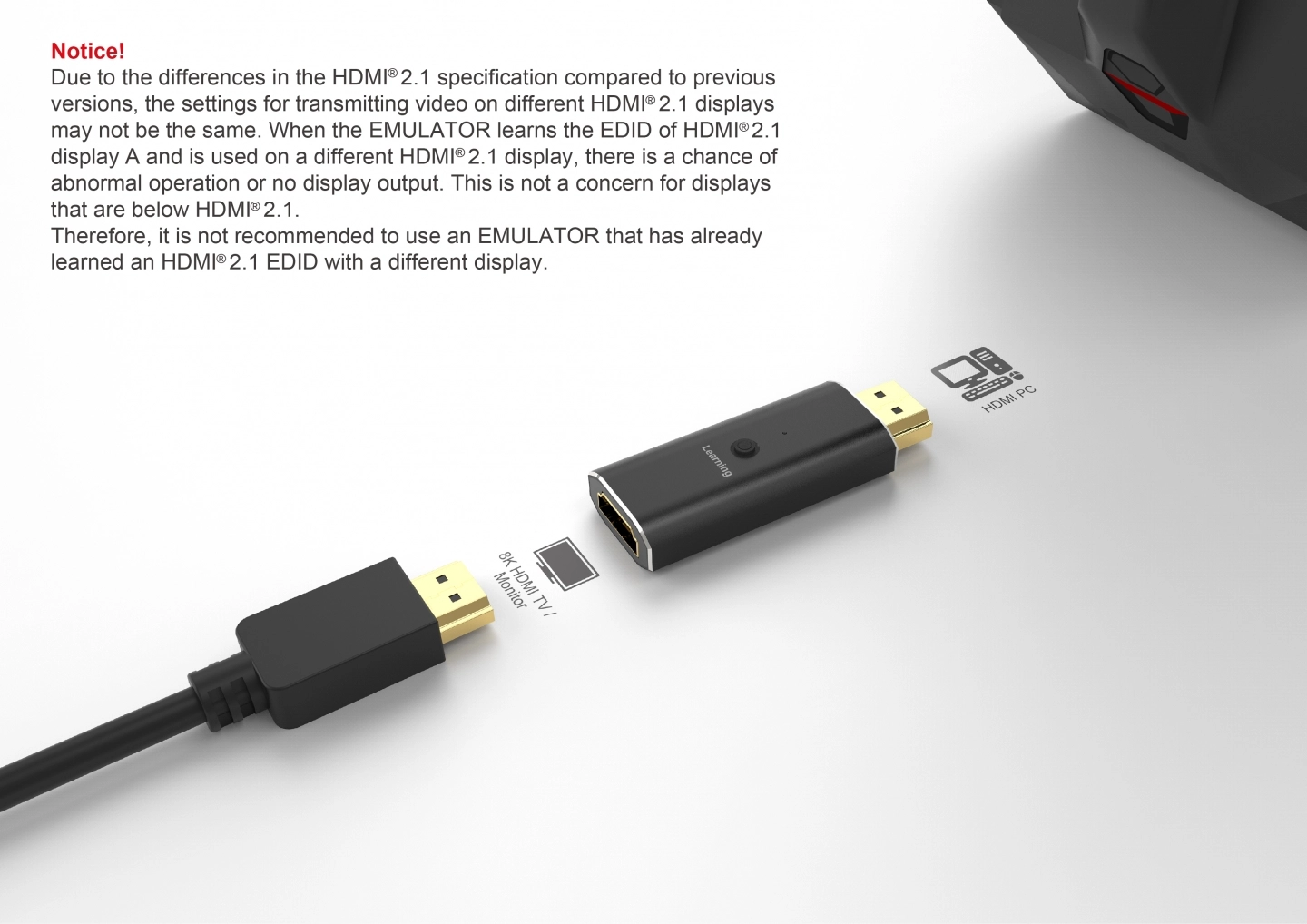

After connecting the source and the display to the emulator, long press the learning button for 3 second.
The LED light will flash and then stay on, indicating that the EDID of the backend display has been learned. - Restore default EDID:
Connect the emulator to the source without connecting the display, long press the learning button for 3 second.
The LED light will flash and then stay off, indicating that the default EDID has been restored.
