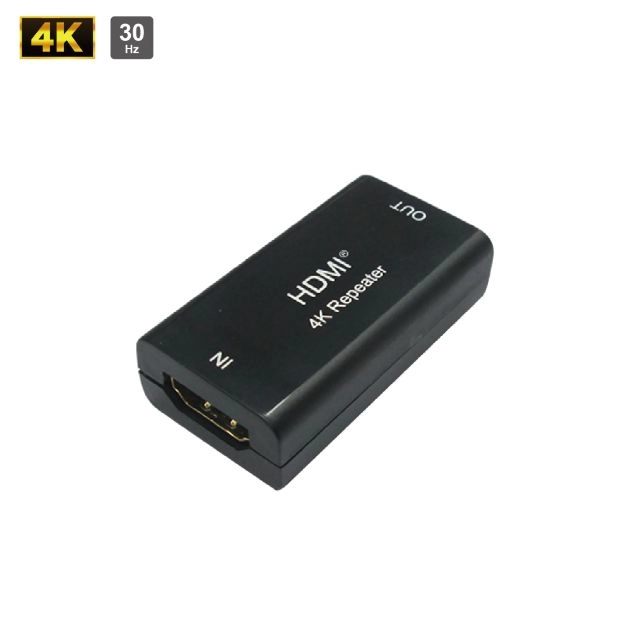

4K HDMI Repeater 30m
4KHR-30
Description：
- Compliant with HDMI 1.4 specification, support 3.4 Gbps TMDS data rate
- Supports 4K@30Hz and 3D Video formats.
- Supports up to 48-bit per pixel Deep Color.
- Integrated equalizer, emphasis and amplitude function to achieve optimized HDMI signal quality.
- Input and output equalization setting are 15dB and 2.5dB for long cable.
- Idle detection function, turn off TMDS common mode output buffer when TMDS clock is not present.
- HDMI1.4 cable 24 AWG (Max. Length 30M, 4K@30Hz)
