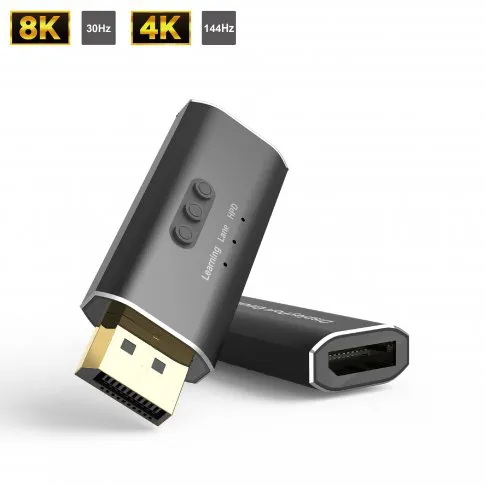

- Input: DisplayPort male
- Output: DisplayPort female
- Hide the sink EDID and provide the general EDID to Source
- Backup EDID without IC programmer (Back up Mode)
- Supports HDCP 1.X, 2.X
- Compliant with DP1.4 Specification
-
2 modes available: Default mode, Backup Mode
Default mode supports resolution up to 4K@60Hz
Backup mode supports resolution up to 4K@144Hz, 8K@30Hz
- LED indicators provide signal status information
- NO additional power supply required, power supply from source device
-

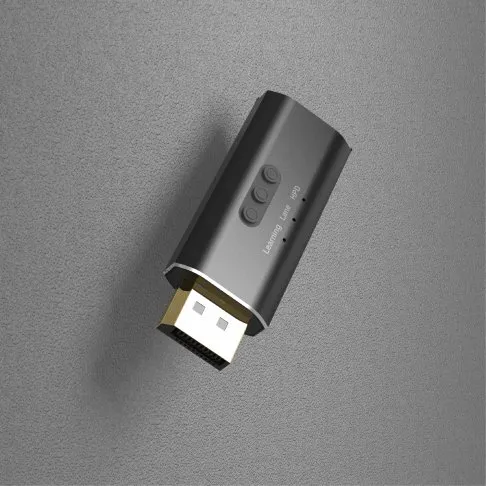

Learning Button:
Learn the screen's EDID or revert to the default EDID.
Learning Indicator Light:
The light will illuminate when EDID learning is successful and go off when reverting to the default EDID. -
Lane Button:
Allows you to choose the number of lanes for data transmission (Lane 1, Lane 2, Lane 4). Each lane has a bandwidth of 8.1 Gbit/s, and you can select based on the desired resolution.
Lane Indicator Light:Lane 1 blinks, Lane 2 remains steady, and Lane 4 is off.
-
HPD Button:
As hot-plugging, controlling the ON and OFF states of HPD (Hot Plug Detect).
HPD Indicator Light:
ON indicates the light is illuminated (screen is active), OFF indicates the light is off (no display on the screen).
- Default mode

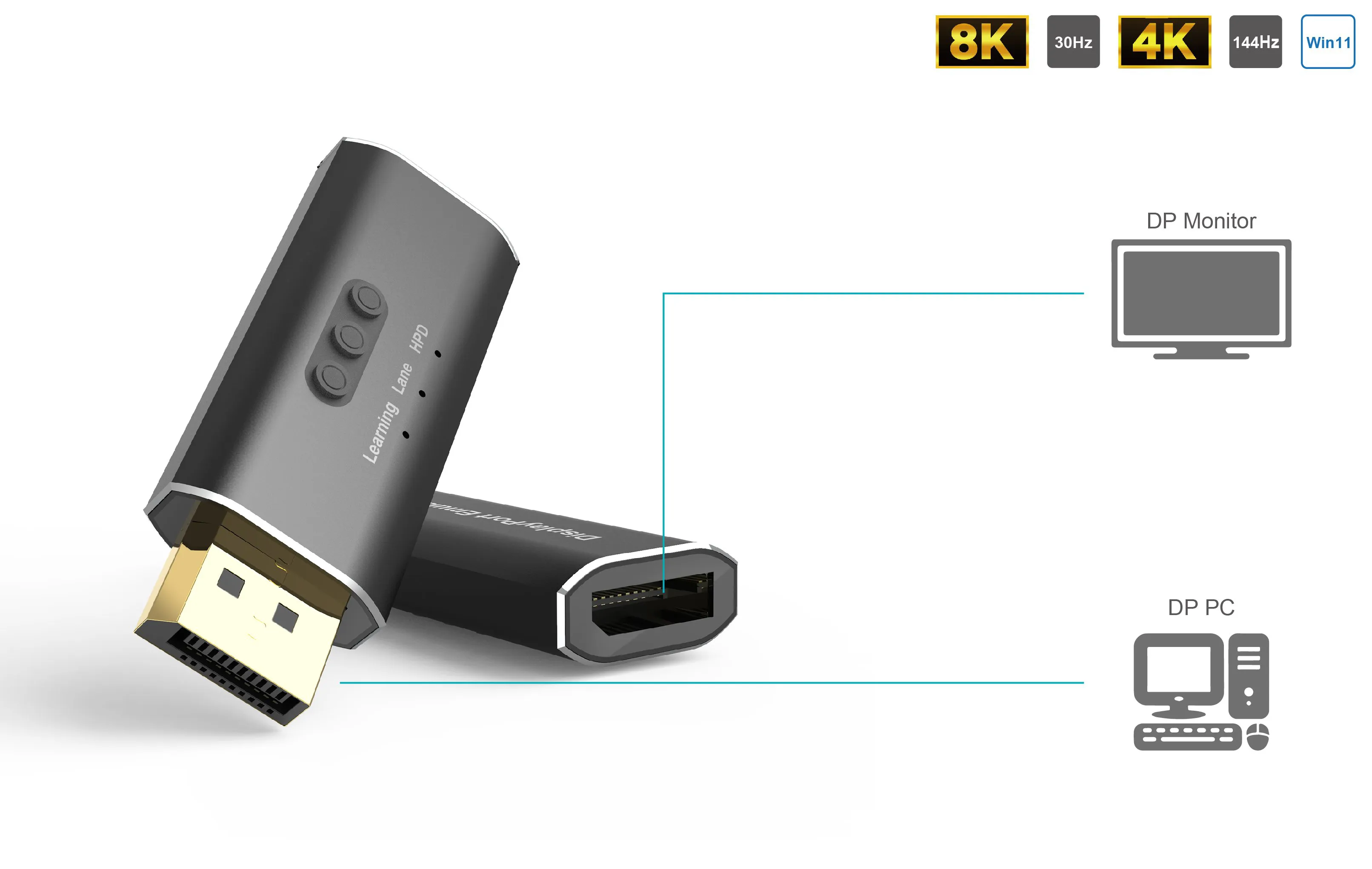

Connect the source and the display to the emulator, You can use the default EDID provided by the emulator immediately.
The EDID name for this mode is DP_EMULX V100. And in this mode, the LED indicator does not light up. - Back up Mode:
After connecting the source and the display to the emulator, press the learning button.
The Learning Indicator Light will flash and then stay on, indicating that the EDID of the backend display has been learned. - Restore default EDID:
Connect the emulator to the source without connecting the display.
The Learning Indicator Light will flash and then stay off, indicating that the default EDID has been restored.
